    Galvanised Hook On Plate Sets

    Galvanised Hook On Plate Sets

    £1.90 – £2.80

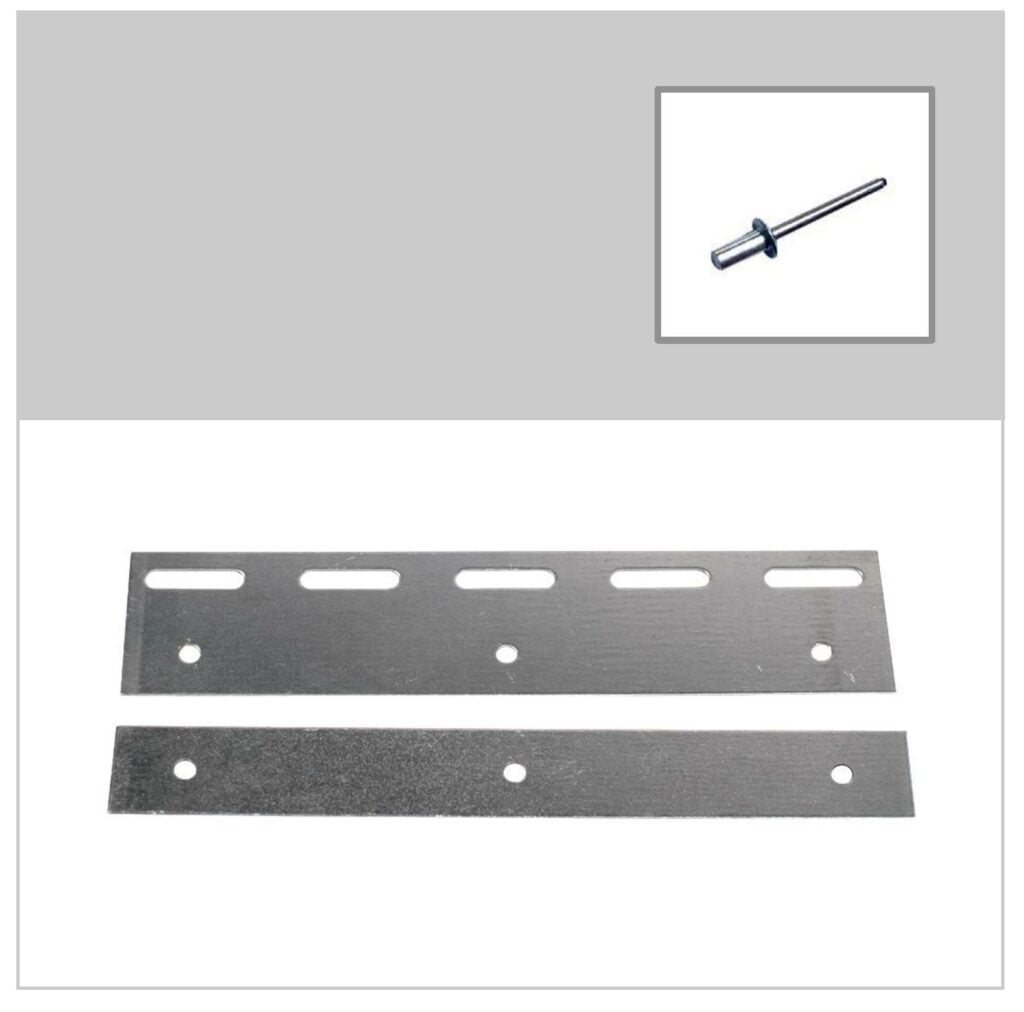

    Galvanised steel hook on plate sets are the quick and easy linking mechanism for attaching PVC strips to galvanised steel hook on rails. Each galvanised steel plate set consists of a front plate and back plate. The two parts are positioned either side of the PVC and mechanically clamped together with rivets (supplied for free.) Each PVC strip requires its own plate set. ALL SIZES NOMINAL. PRICES EX-VAT.

    Can’t find what you want? Contact us for more help or get a personalised quote.

    Clear
    SKU: HOGPlate Categories: All Strip Curtain Hanging Parts, Hook On Rails | Redwood Strip Curtains Tags: 100mm hook on plate set, 200mm hook on plate set, 300mm hook on plate set, 400mm hook on plate set, coldroom curtains rails, commercial curtain rails, curtain fixing plate, curtain rails, door curtain rails, door strip fixing plate, door strip rails, freezer curtain rails, galvanised steel curtain rails, galvanised steel door curtain rails, galvanised steel hook on rails, hook on, hook on curtain rails, hook on curtains, hook on plate set, hook on rails, pedestrian curtain rails, plastic strip fixing plate, PVC curtain rails, PVC strip curtain products, PVC strip curtain rails, PVC strip curtains hanging rails, pvc strip fixing plate, redwood PVC, Redwood PVC curtains, Redwood Strip Curtains, strip curtain fixing plate, strip curtain rails
    • More Information
    • Reviews (0)

    Galvanised Hook On Plate Sets.

    CLICK HERE TO VIEW HOOK ON CURTAIN BROCHURE>

    Galvanised hook on plate sets are used in conjunction with galvanised steel hook on rails to make the classic strip curtain system. They are easy to fit (using supplied rivets) and requiring no ongoing maintenance. Made from galvanised mild steel, these plate sets offer a more practical alternative to our stainless steel plate sets. Suitable for environments where appearance is less important or for those seeking a more ‘industrial’ look to their curtain. They are easy to fit and require no ongoing maintenance.

    Before connecting the plate sets to your PVC strips, you’ll first need to drill fixing holes in the PVC. TIP: The plate sets make ideal templates for doing this. Just lay one in position on the end of the PVC and drill through the PVC accordingly.

    Note: If your strip curtain needs to withstand heavy / repeated used by forklifts or other powered vehicles, we would not recommend this hanging system. More suitable would be the more robust Twin-Track rail or the heavy-duty Swivel-Hinge rail.

    Show more...

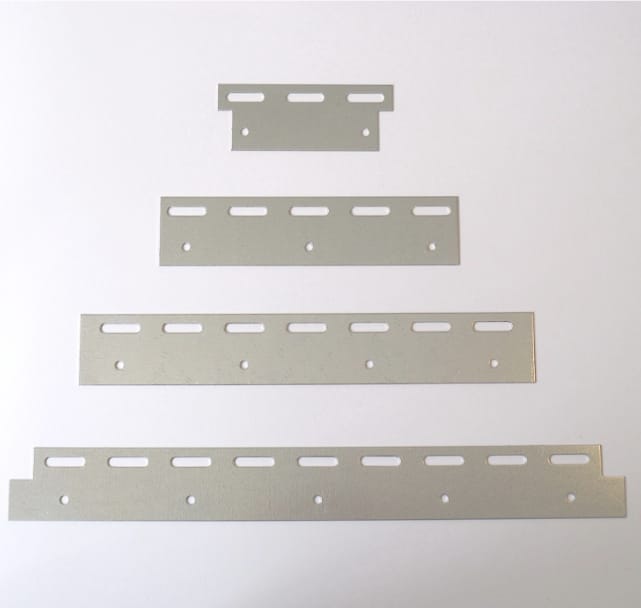

    Available in: 300mm & 400mm width sizes to suit all regular PVC strip widths. Suitable for curtains up to 10m high.

    Note: All dimensions nominal. Subject to original manufacturer’s standard tolerances.

    Technical Details:

    Hanging Format: Galvanised Steel Hook on

    Plate Set Size: 300mm & 400mm

    Material: Galvanised mild steel

    Pitch Centres of Hanging Slots: 41mm

    Size of Fixing Holes: 6mm

    Fixings: Aluminium rivets – included.

    Recommended Traffic: Pedestrian, pump truck and very occasional / light weight forklift use.

    Recommended Environments: General Pedestrian, Food & Catering, Commercial, Pest Control.

    Longevity: This product’s lifespan will be dictated by where it’s used, what type of traffic might move through it and how carefully (or aggressively) such traffic does so. This is beyond any manufacturer’s or suppliers control. Used appropriately, the product should last for many years.
