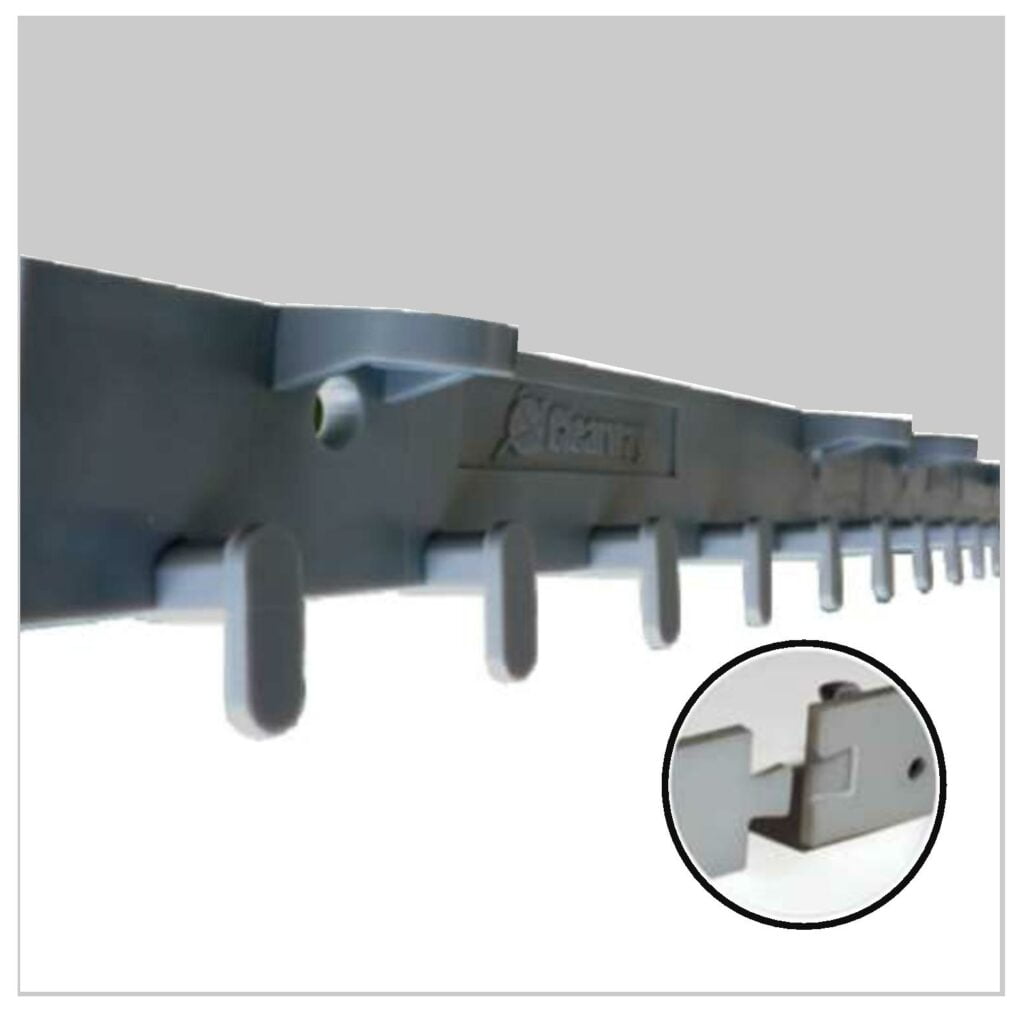

The child-safe strip curtain hanging system trusted across food production, commercial and public environments. QuickMount PVC curtain rails are manufactured from toughened polypropylene and allow PVC strips to push directly onto the rail without the need for metal hanging plates.
Designed for locations where user safety is important, QuickMount helps reduce the risk of injury should strips become detached through accidental misuse or impact.
✔ Child-safe alternative to metal hanging systems
✔ No metal plate sets required
✔ Fast strip installation and replacement
✔ Surface or soffit mounting options
✔ Suitable for 200mm and 300mm PVC strips
✔ Link together to span virtually any opening width
✔ Ideal for pedestrian and food production environments
Supplied in standard 610mm rail lengths.
ALL SIZES NOMINAL. PRICES EX-VAT.
CLICK HERE TO VIEW QUICKMOUNT BROCHURE>
Traditional strip curtain systems use metal plate sets attached to every PVC strip.
While highly effective, these systems may not be ideal in environments where safety, hygiene or ease of maintenance are priorities.
QuickMount helps solve:
The push-on design allows strips to be installed or replaced quickly without specialised tools.
QuickMount offers a completely different approach to strip curtain installation.
Instead of using stainless steel plates, the PVC strips are punched with hanging holes and simply push onto the rail's moulded peg system.
This provides:
✔ Faster strip replacement
✔ Fewer components to install
✔ Reduced injury risk
✔ Lower maintenance requirements
✔ Clean, professional appearance
✔ Excellent corrosion resistance
For many pedestrian and food production environments, QuickMount provides the ideal balance between safety, simplicity and durability.
QuickMount rails are commonly used in:
They are particularly popular in locations where user safety is prioritised over extreme impact resistance.
QuickMount is ideal when:
If the curtain will experience frequent forklift traffic or heavy industrial use, Twin-Track or Swivel-Hinge systems are normally more appropriate.
| System | Best For | Installation Speed | Traffic Level |
| QuickMount | Pedestrian & food environments | Very Fast | Light-Medium |
| Hook On | General purpose applications | Fast | Light-Medium |
| Twin-Track | Forklift traffic | Medium | Heavy |
| Swivel-Hinge | Extreme industrial use | Medium | Very Heavy |
QuickMount rails can be fitted directly onto a structurally supporting surface using the pre-drilled fixing holes.
Rails may be:
Once installed, compatible PVC strips simply push onto the peg fingers without requiring separate hanging plates.
Note: Rails are not self-supporting and must be continuously supported across the opening width.
Hanging Format: QuickMount Push-On System
Rail Length: 610mm
Material: Toughened Polypropylene
Colour: Matt Grey
Hook Pitch Centres: 50mm
Fixing Hole Diameter: 8mm
Compatible Strip Widths: 200mm & 300mm PVC strips
Recommended Curtain Height: Up to 5m
Suitable for:
✔ Pedestrians
✔ Trolleys
✔ Light pump truck traffic
Not recommended for:
✖ Forklift traffic
✖ Heavy industrial vehicle traffic
✖ High-impact applications
When installed correctly and used within its recommended traffic limits, QuickMount rails are designed to provide many years of reliable service.
Service life will depend on traffic intensity, operating environment and maintenance practices.
Yes. Rails can be trimmed and linked together to suit most opening widths.
No. PVC strips push directly onto the rail's moulded peg system.
Only if the strips are compatible with the QuickMount hole pattern. Standard Hook-On strips are not directly compatible.
No. For regular forklift traffic we recommend Twin-Track or Swivel-Hinge systems.
The absence of metal hanging plates helps reduce injury risks if strips are accidentally pulled down.
