Partition PVC Strip Curtains (Hook on)

Partition PVC Strip Curtains.

CLICK HERE TO VIEW HOOK ON CURTAIN BROCHURE>

Partition PVC Strip Curtains

Partition PVC strip curtains provide a flexible alternative to permanent walls, allowing businesses to divide internal spaces quickly and economically. Whether you're looking to create temperature-controlled work zones, screen off storage areas, reduce noise transfer between departments or enclose a mezzanine floor, PVC curtain walls offer an effective solution without restricting visibility or access.

Unlike fixed partitions, PVC strip curtains allow staff, trolleys and equipment to pass through freely whilst helping contain heat, air conditioning, dust and airborne debris. The transparent PVC maintains clear sightlines across your facility and allows natural light to pass through with minimal distortion.

Why Choose Redwood Partition PVC Curtain Walls?

Reduce Heating & Cooling Costs

Large open spaces are expensive to heat and cool. Partition curtains allow you to create smaller, more efficient working zones, helping reduce energy consumption and improve workplace comfort.

Create Flexible Internal Layouts

Unlike permanent construction, PVC curtain partitions can be installed quickly and adapted as operational requirements change.

Maintain Visibility & Workflow

Clear PVC strips allow supervisors and staff to see between areas whilst maintaining easy pedestrian and trolley access.

Control Dust & Noise

Partition curtains help reduce the transfer of dust, draughts and operational noise between different areas of a building.

About The Hook-On Rail System

Hook-On is the classic PVC strip curtain hanging system. Manufactured from durable 430-grade stainless steel, it offers excellent corrosion resistance and is particularly suited to environments where cleanliness and appearance matter.

Each PVC strip is supplied pre-fitted with matching stainless steel plate sets which simply hook onto the rail, making installation, maintenance and future strip replacement straightforward.

Fitting

Rails can be face-fixed or soffit-fixed using the pre-drilled M6 fixing holes.

Please note:

• Fixings are not supplied
• Rails are not self-supporting
• Rails must be mounted to a structurally suitable surface across the full opening width

About The PVC

Manufactured from high-clarity Standard Clear PVC, these strips provide excellent visibility whilst creating an effective barrier between workspaces.

Benefits include:

• Excellent transparency
• Flexible and impact resistant
• Effective noise reduction
• UV-stabilised formulation
• Suitable for internal commercial and industrial use
• Easy to trim if adjustments are required on site

Strip Configuration

300mm Wide / 36% Overlap

Recommended for openings up to 3000mm high.

Common Applications

• Warehouse partition curtains

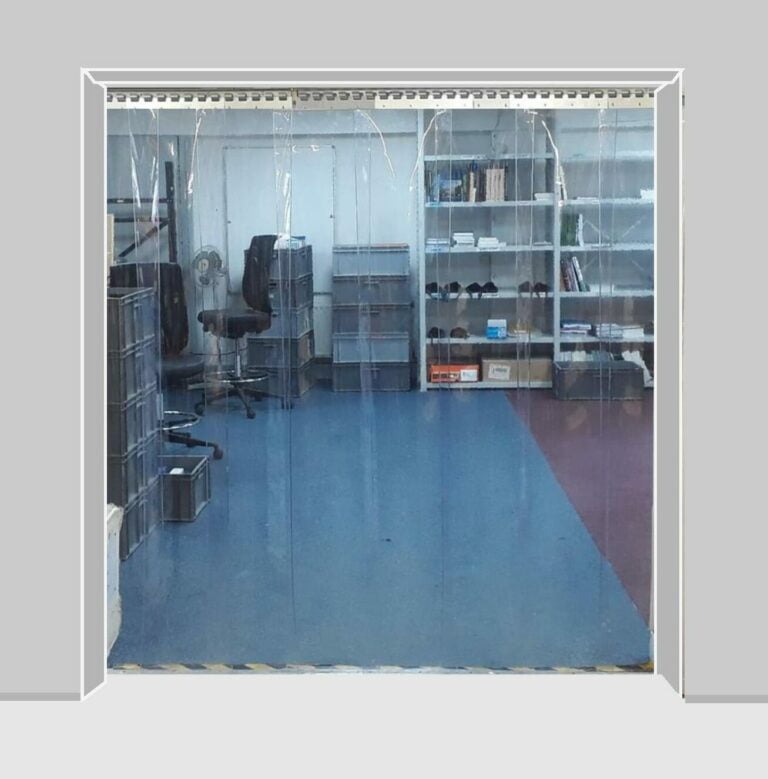

• Workshop partition walls
• Factory work zone separation
• Packing and dispatch areas
• Storage area screening

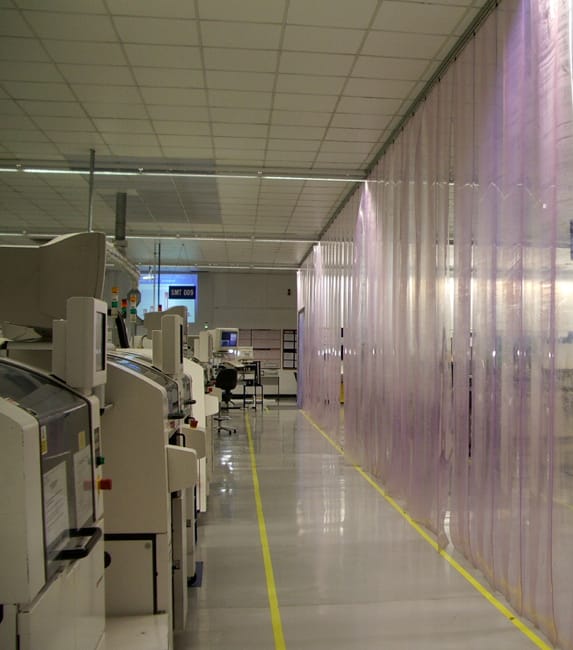

• Production line segregation
• Mezzanine floor enclosures

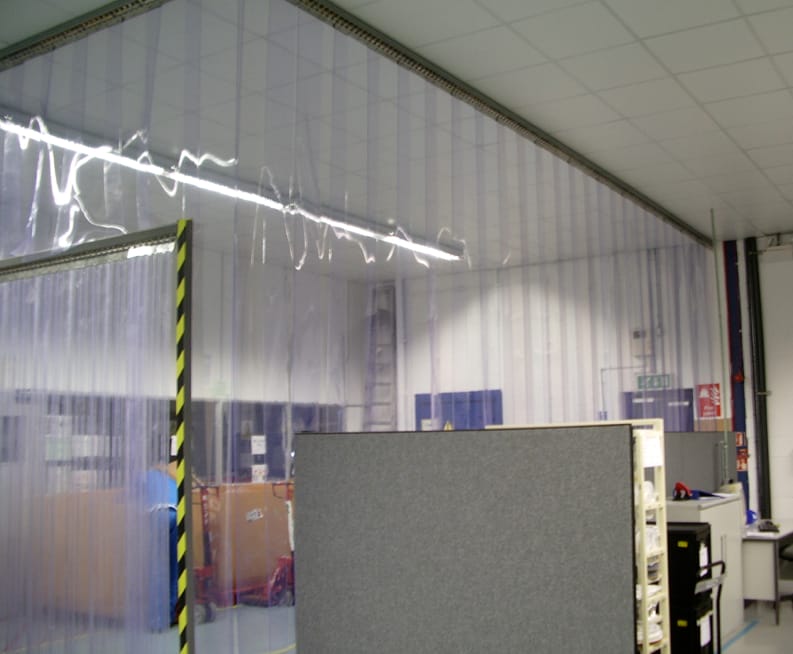

• Internal room dividers
• Temperature-controlled workspaces

Key Details

Hanging Tip

PVC strips are supplied rolled. Some temporary curl may be visible when first installed. For best results, unroll the strips and allow them to flatten overnight before hanging. Gentle heat or reverse rolling can help speed up the process.

Longevity

PVC strip is a consumable product and service life varies depending on traffic levels, operating conditions and environmental exposure.

For maximum lifespan, we recommend installation within internal or sheltered locations. When exposed continuously to external weather conditions, clarity and performance may reduce more quickly over time.

NOTE: All dimensions nominal and subject to normal manufacturing tolerances.
