Loading Bay Strip Curtains

Heavy Duty Swivel Hinge Strip Curtains for Warehouse Loading Bays

Loading bay strip curtains using the heavy duty swivel hinge rail system.

CLICK HERE TO VIEW SWIVEL HINGE CURTAIN BROCHURE>

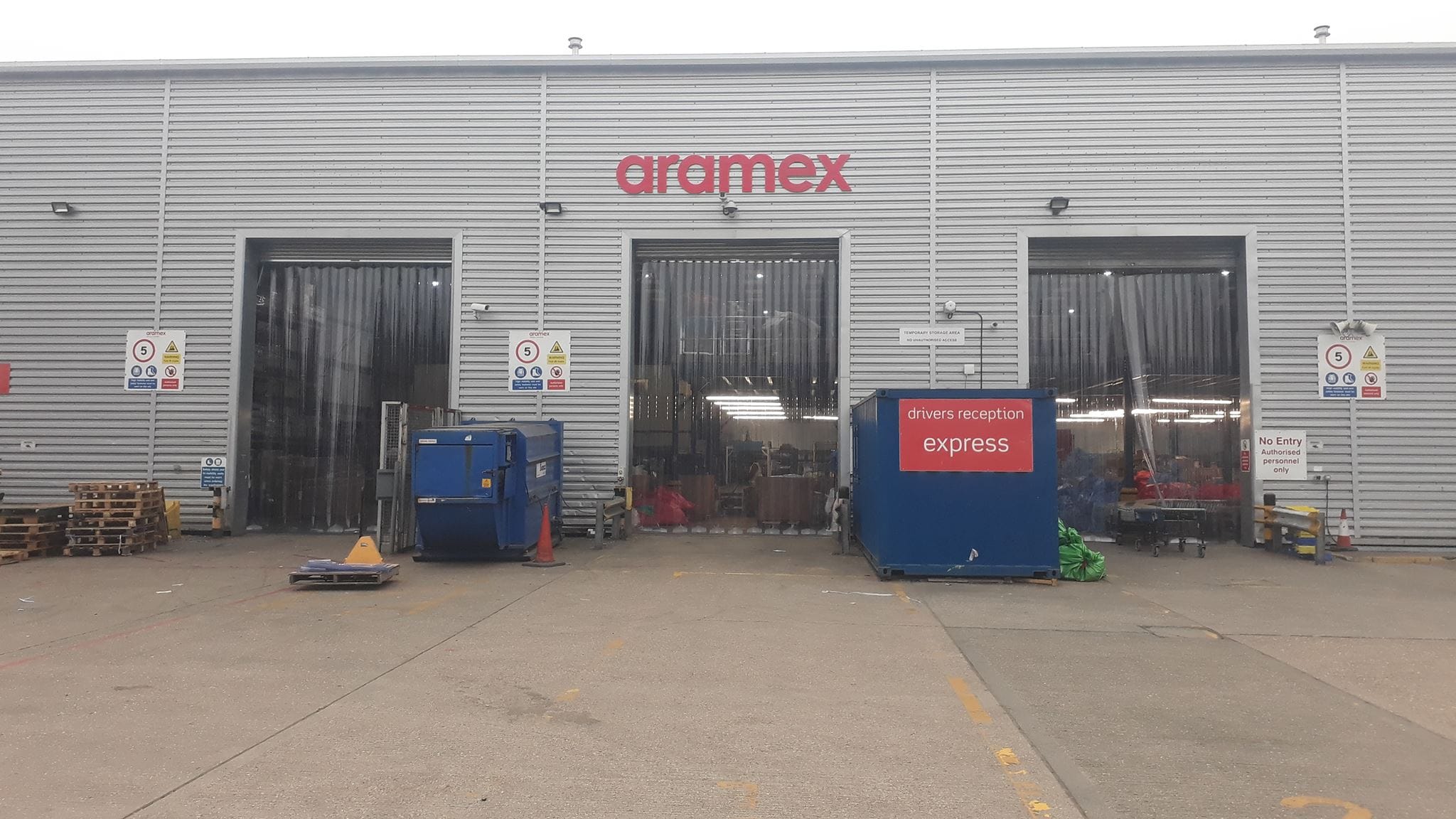

Loading bay PVC strip curtains are specifically designed for busy industrial doorways where strength, durability and reliable environmental control are essential. Whether installed on warehouse loading bays, loading docks, dispatch areas or goods in and goods out entrances, they provide an effective barrier against weather whilst allowing continuous movement of forklifts, pallet trucks and personnel.

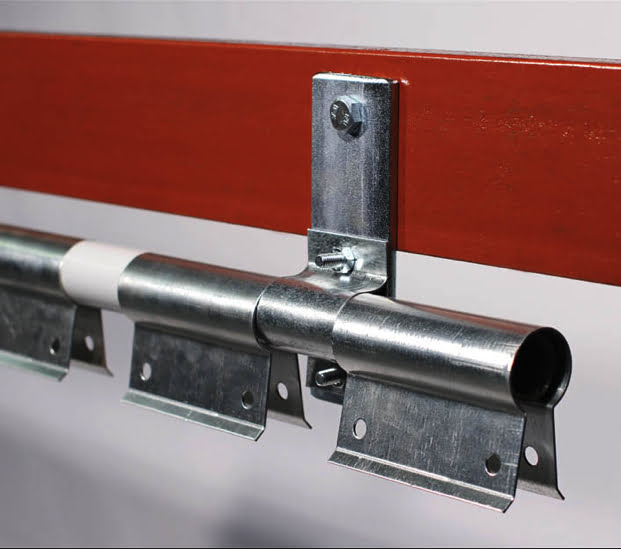

Unlike lightweight strip curtain systems, these curtains use Redwood's heavy-duty Swivel Hinge hanging system, developed specifically for demanding industrial environments. Each 400mm x 4mm PVC strip is securely bolted into galvanised steel swivel hinges, creating an exceptionally robust curtain capable of withstanding repeated impacts from busy warehouse traffic.

The result is a loading bay curtain that helps reduce heat loss, improve warehouse energy efficiency and minimise downtime caused by damaged curtain systems.

Why do loading bays use 400mm x 4mm PVC?

Large warehouse openings experience greater wind pressure, heavier traffic and more frequent impacts than standard pedestrian doorways. That's why our loading bay strip curtains are manufactured using 400mm wide x 4mm thick industrial PVC strips. The wider, thicker strips provide greater stability, improved weather resistance and increased durability, making them the preferred choice for forklift entrances, loading docks and distribution centres. The 60% overlap also creates a more effective barrier against draughts and heat loss whilst still allowing vehicles to pass through smoothly.

What Problems Do Loading Bay Strip Curtains Solve?

Warehouse loading bays are one of the largest sources of energy loss within industrial buildings.

Loading bay strip curtains help solve:

• Heat escaping through frequently used loading bays
• Cold air entering warehouses during deliveries
• Wind and rain blowing into loading docks
• Dust, leaves and airborne debris entering buildings
• Birds entering warehouse loading areas
• Rising warehouse heating costs
• Damage caused by repeated forklift traffic
• Downtime caused by weak curtain systems

They provide an effective thermal barrier without restricting vehicle access.

Best Applications

Heavy duty loading bay PVC curtains are commonly installed on:

• Warehouse loading bays
• Loading docks
• Goods in departments
• Goods out departments
• Distribution centres
• Logistics hubs
• Manufacturing facilities
• Dispatch areas
• Industrial warehouses
• HGV loading areas
• Forklift entrances
• Large commercial doorways

Why Choose the Swivel Hinge System?

Busy loading bays place enormous stress on strip curtain hardware.

That's why Redwood developed the Swivel Hinge hanging system—our strongest strip curtain rail for demanding industrial environments.

Heavy-duty galvanised steel construction

Every hinge is manufactured from galvanised steel for exceptional durability and corrosion resistance.

Secure bolted strip fixing

Each PVC strip is bolted directly into the swivel hinge using supplied M8 fixings, dramatically reducing the chance of strips pulling free under heavy traffic.

Built for constant warehouse use

Designed specifically for forklifts, pallet trucks and demanding industrial environments where lighter hanging systems can suffer repeated damage.

Made to fit your opening

Rails are manufactured to suit your opening dimensions and supplied fully assembled for quicker installation.

When Should You Choose Loading Bay PVC Curtains?

This system is ideal when:

• Forklifts regularly pass through the opening
• Pallet trucks are used throughout the day
• Large warehouse doors remain open during loading
• Heat loss needs reducing
• You want to improve warehouse energy efficiency
• Weather protection is required
• Long-term durability is a priority

If your doorway only carries pedestrian traffic, one of our Hook-On or QuickMount systems may be more suitable.

Key Benefits

✔ Heavy duty industrial loading bay curtain

✔ UK's toughest Swivel Hinge rail system

✔ Built for frequent forklift traffic

✔ Helps reduce warehouse heating costs

✔ Protects against wind, rain and dust

✔ Maintains visibility through clear PVC

✔ Individual strips can be replaced

✔ Manufactured to your exact opening size

Technical Details

Kit Contents

Rails manufactured to your opening width, pre-cut 400mm x 4mm PVC strips, M8 fixings and fitting instructions.

Strip Overlap

400mm / 60% overlap (recommended up to 5000mm high)

PVC Type

Standard Clear PVC

Hanging System

Heavy-duty galvanised Swivel Hinge

Bracket Options

R1 Face Fix

R2 Soffit Fix

R3 90° Stand-off

Recommended Temperature

0°C to +40°C

Certification

DOP free. Fully compliant with REACH regulations.

Installation

Swivel Hinge rails can be face mounted, soffit mounted or installed using stand-off brackets depending on your loading bay structure.

Rails are supplied fully assembled ready for installation.

PVC strips arrive pre-punched and simply bolt into each galvanised swivel hinge using the supplied M8 nuts and bolts.

Because the rails are extremely robust, they must always be fixed to a structurally sound surface capable of supporting the full curtain weight.

Longevity

Loading bay PVC strip curtains operate in some of the toughest industrial environments, so PVC strips are considered a consumable component. Service life depends on traffic frequency, forklift usage and environmental conditions.

The galvanised Swivel Hinge rail system is engineered for long-term commercial use, while individual PVC strips can be replaced as they wear, helping reduce ongoing maintenance costs compared with replacing an entire curtain system.
