Product Range — Mobile Welding Screens
We can supply mobile welding screens in 5 sizes: (Shown above, from left to right)

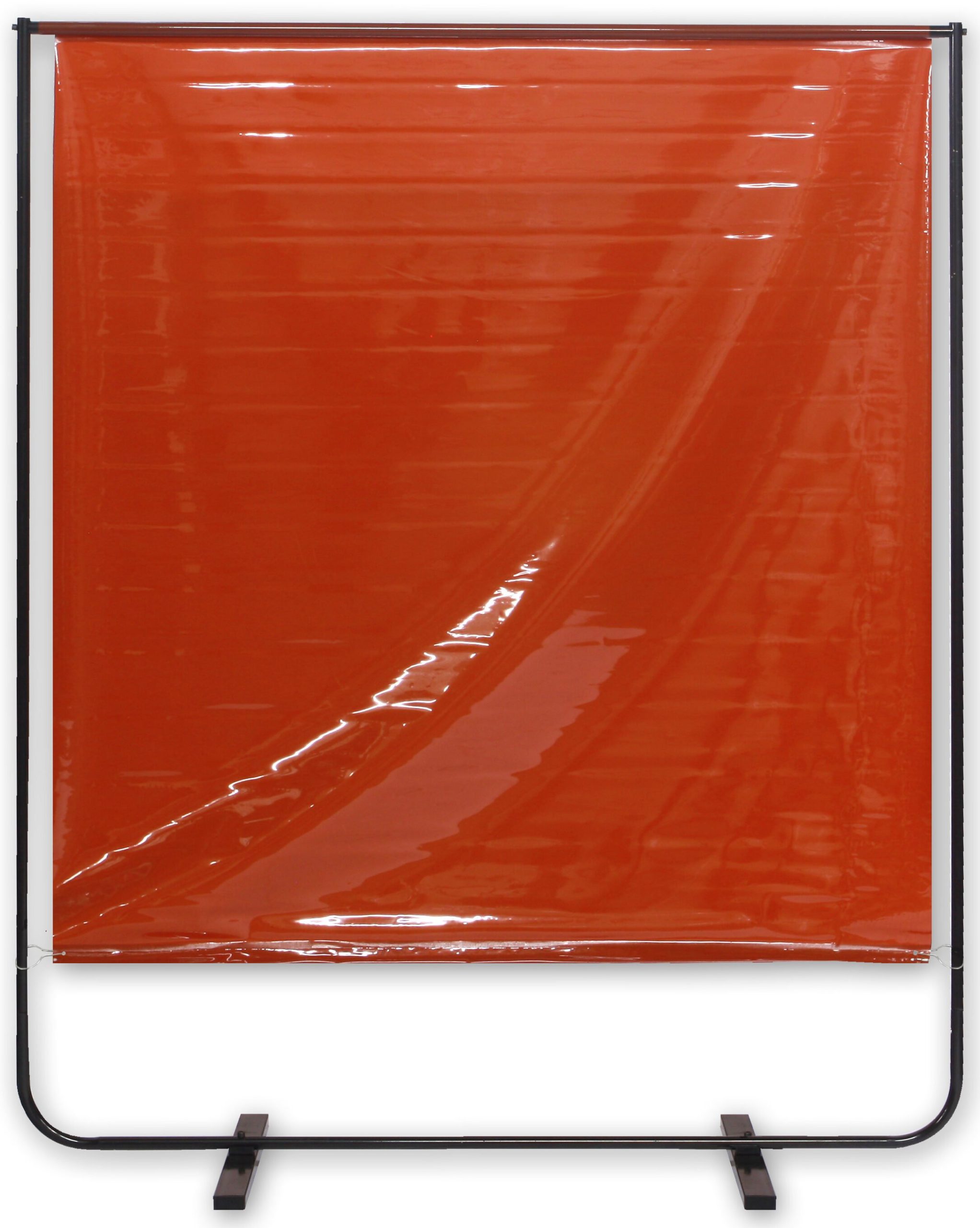

100-Series: 1515mm wide x 1900mm high. Free standing, click-lock frame and single panel of EN1598 grade PVC. (Base of sheet clips to frame sides.)

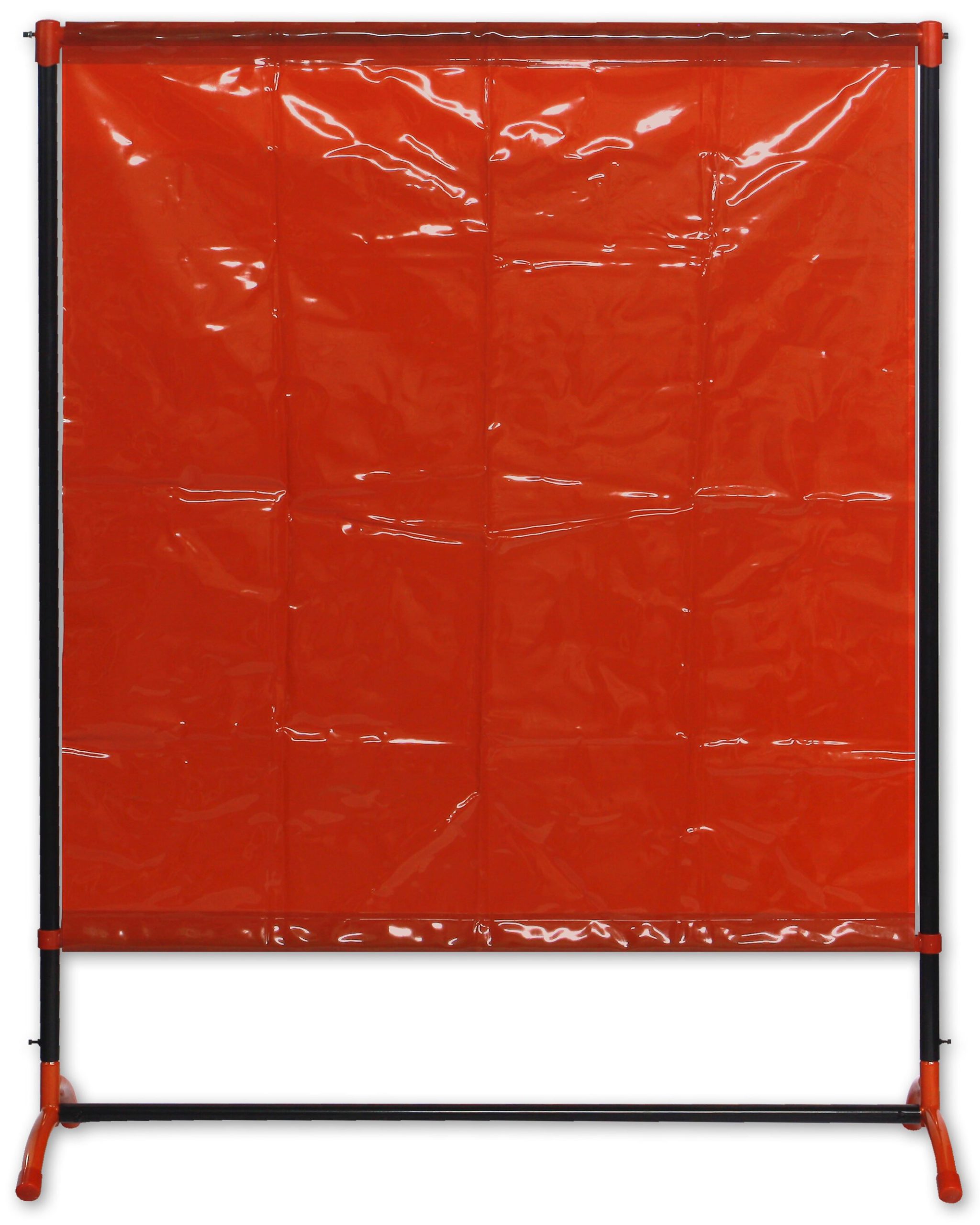

200-Series: 1475mm wide x 1900mm high. Free standing, bolt-fixing frame and single panel of EN1598 grade PVC. (Base of sheet secured to lower bar.)

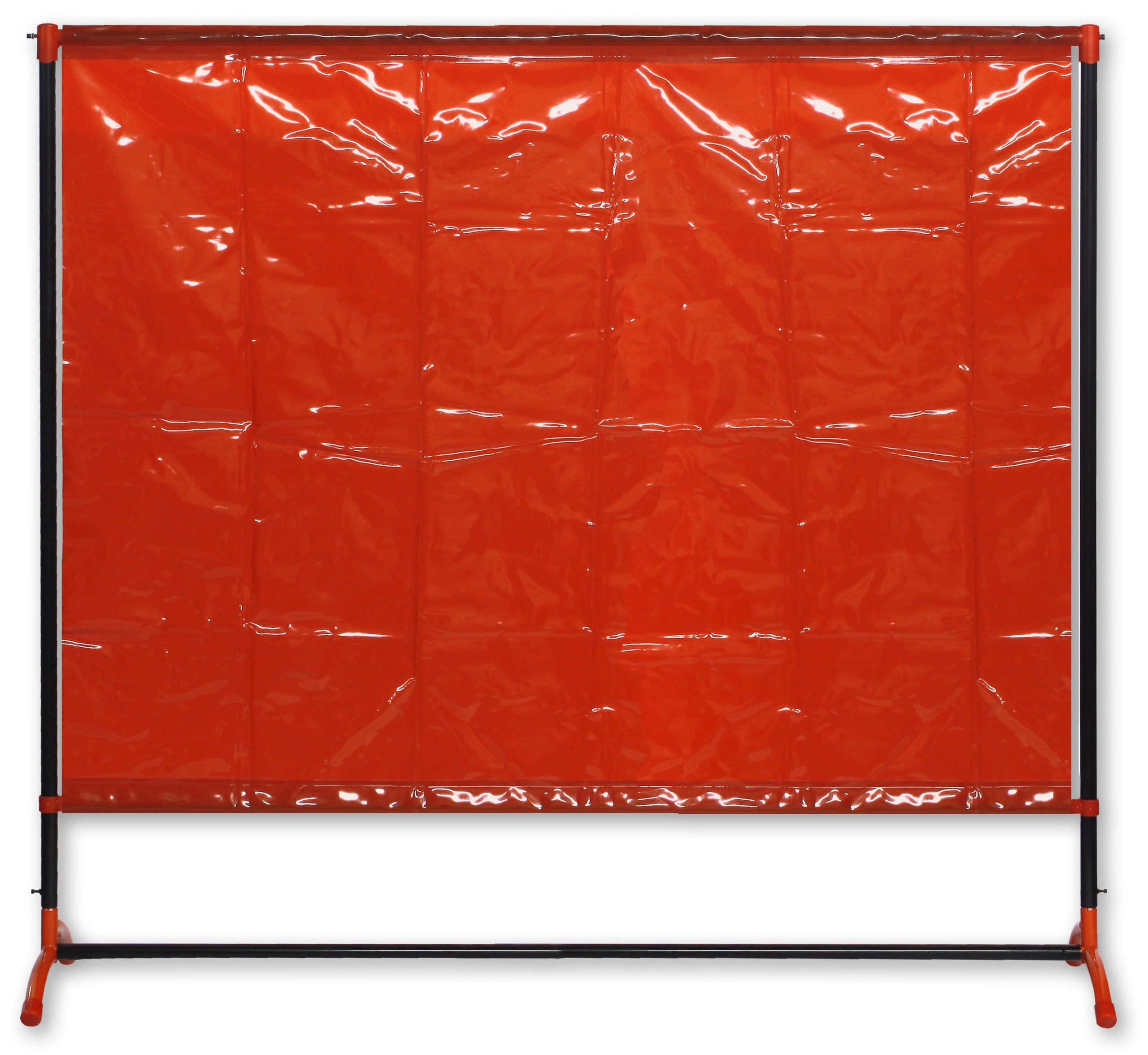

300-Series: 2065mm wide x 1900mm high. Free standing, bolt-fixing frame and 5 no. strips of EN1598 grade PVC. (Ring and clip fixing to frame.)

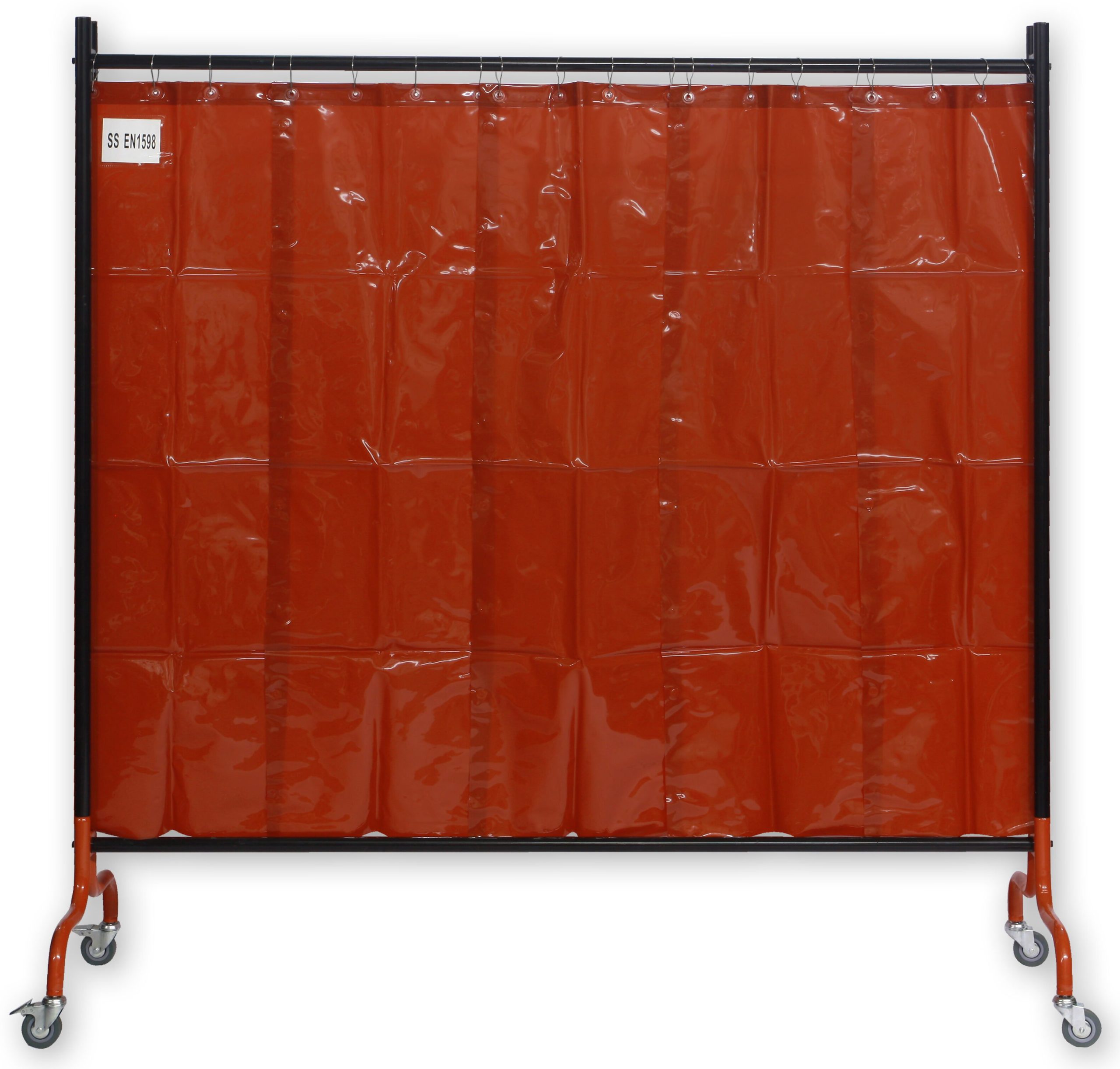

400-Series: 1960mm wide x 1900mm high. Free standing with castors, bolt-fixing frame and 5 no. strips of EN1598 grade PVC. (Ring and clip fixing to frame.)

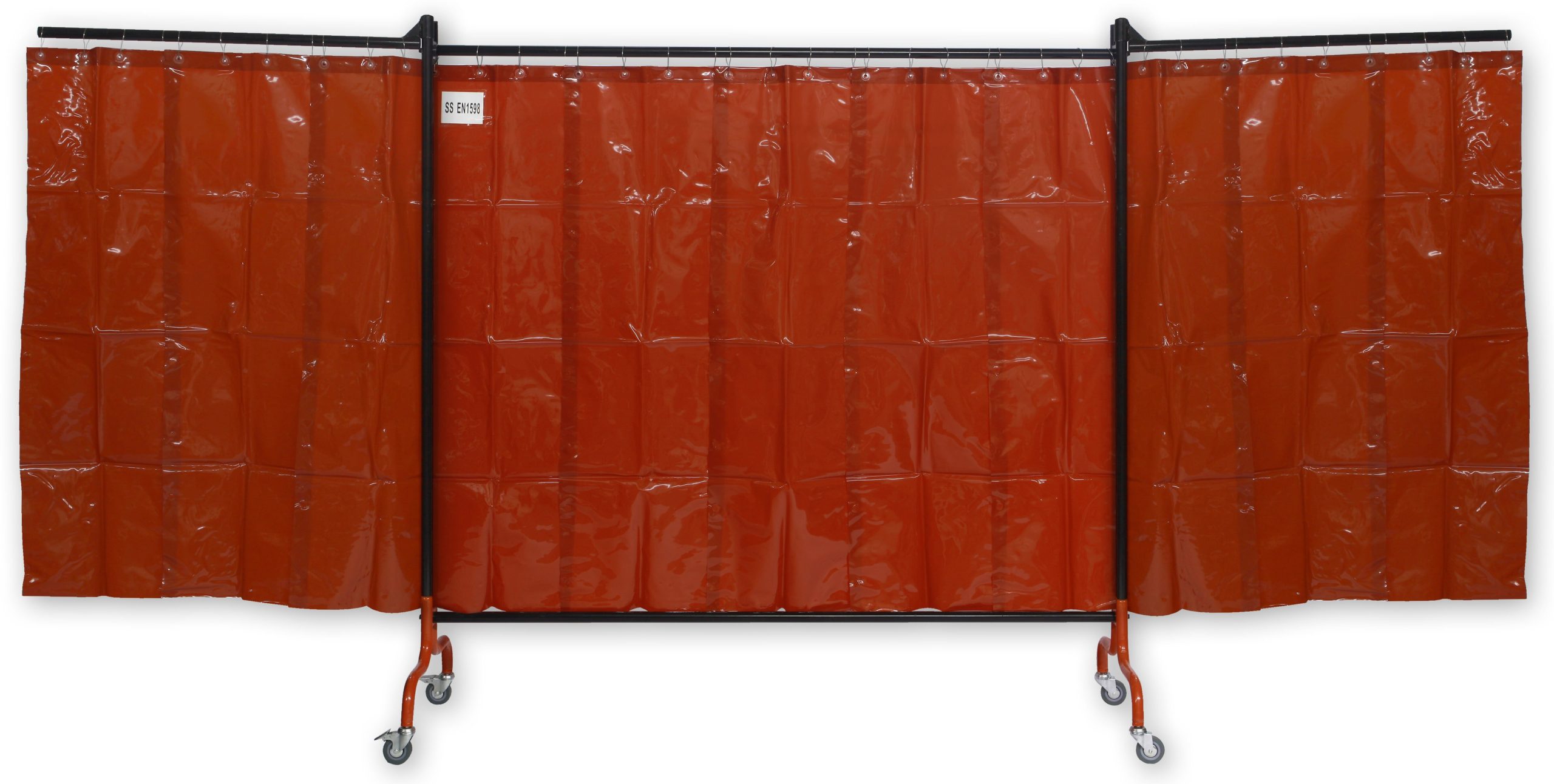

500-Series: 4115mm wide x 1900mm high. Free standing with castors, bolt-fixing frame and 15 no. PVC strips of EN1598 grade PVC. (Ring and clip fixing to frame.) Detachable side arms that can pivot 360° if required.
All supplied with full assembly instructions.
We also offer welding strip curtain kits to hang on fixed rails. See them here>>>
What Problems Do Mobile Welding Screens Fix?
Welding operations create serious visibility and safety risks for nearby workers. Mobile welding screens provide instant controlled protection without permanent installation.
They help solve:
- Exposure to welding arc flash (“arc-eye”)
- Unsafe shared workshop environments
- Temporary welding stations lacking protection
- Frequent layout changes in production areas
- Need for portable welding safety barriers
- Protecting walkways near welding work
Unlike fixed welding curtains, mobile screens can be moved, repositioned, or stored as workspaces change.
Best Applications for Mobile Welding Screens
Mobile welding safety screens are particularly effective in environments where flexibility matters.
Common Applications
- Fabrication and engineering workshops
- Maintenance and repair bays
- Training colleges and apprenticeships
- Automotive repair facilities
- Manufacturing production lines
- Temporary welding zones
- Shared industrial workspaces
Perfect where permanent welding curtains are impractical.
Welding Screen Options Comparison
Which Welding Screen Type Should You Choose?
| Screen Type |
Best For |
Mobility |
Coverage |
Installation |
| Mobile Welding Screens |
Flexible work areas |
⭐⭐⭐⭐⭐ |
Medium–Large |
Very Fast |
| Fixed Welding Curtains |
Permanent bays |
⭐ |
Large |
Medium |
| Welding Strip Curtains |
Walk-through access |
⭐⭐ |
Continuous |
Medium |
| Welding Booth Enclosures |
Dedicated stations |
None |
Maximum |
Complex |
Mobile welding screens are the best solution when welding locations change regularly.
Installation Guide
How Easy Are Mobile Welding Screens to Install?
All mobile welding screens are supplied as complete kits ready for assembly.
Installation Overview
- Assemble steel frame sections
- Secure frame using click-lock or bolt fixings
- Attach PVC panel or strips
- Position screen in required location
Estimated Installation Time:
10–25 minutes depending on model.
Tools Required
- Basic hand tools (bolt-fix models only)
- No specialist installation required
No floor fixing or permanent mounting needed.
How to Choose the Right Mobile Welding Screen
Selecting the correct welding screen depends on workspace requirements.
Key Decision Factors
Opening Width
- Small welding areas → 100 or 200 Series
- Wider protection zones → 300 or 400 Series
- Large fabrication bays → 500 Series
Mobility Needs
- Fixed positioning → Standard frames
- Frequent relocation → Castor-mounted screens
Access Requirements
- Full visual barrier → PVC sheet panels
- Walk-through access → PVC strip versions
Work Environment
- Internal industrial use recommended
If unsure, our team can recommend the correct screen based on your layout. Get in Contact!
Real Operational Benefits
Industrial buyers choose mobile welding screens because they improve workplace efficiency — not just compliance.
Operational Advantages
- Reduces risk of arc-eye injuries
- Improves workplace safety compliance
- Creates instant welding zones
- Allows flexible factory layouts
- Acts as partial noise barrier
- Protects surrounding equipment and personnel
- Cost-effective alternative to permanent welding booths
About the Anti-UV Welding PVC
Welding arc radiation presents a serious hazard to nearby workers.
Our welding screens use EN1598 compliant anti-UV PVC, manufactured with a specialised formula that reduces harmful ultraviolet light transmission while maintaining safe visibility of the welding process.
Key Properties:
- Anti-UV protection
- Highly flexible industrial PVC
- DOP free formulation
- Fully REACH compliant
- Durable industrial performance
Recommended Temperature Range:
0°C to +40°C
Alternative Welding Curtain Solutions
Need a fixed installation instead?
We also supply welding strip curtains for replacement designed for permanent mounting on rails where continuous protection is required.
👉 See Welding Strip Curtains Replacement Strips in With Twin Track or Hook on
FAQ — Mobile Welding Screens
Are mobile welding screens EN1598 compliant?
Yes. All supplied PVC meets EN1598 welding safety requirements.
Can the screens be moved easily?
Yes. Selected models include castors for frequent repositioning.
Do welding screens block harmful UV light?
Yes. Anti-UV PVC reduces arc radiation exposure to surrounding workers.
Can I replace damaged PVC panels or strips?
Yes. Replacement PVC Welding Strips are available.
Are mobile welding screens suitable for outdoor use?
They are designed primarily for internal industrial environments.
Do I need professional installation?
No, assembly is simple and completed using basic tools.
Not Sure Which Screen You Need?
Send us:
✔ Opening size
✔ Welding process
✔ Mobility requirements
We’ll recommend the correct mobile welding screen solution and provide a fast quotation.
👉 Request Expert Recommendation
