Industrial loading bays are high-pressure environments where speed and efficiency are non-negotiable. However, standard door solutions often fail to meet the demands of constant forklift traffic. When a vehicle passes through a standard PVC curtain, the strips are pulled against the rail, creating significant friction and stress. Over time, this leads to torn strips, damaged rails, and compromised thermal control.
Redwood Strip Curtains provides a robust alternative: the Swivel Hinge PVC curtain system. This guide explores why the swivel hinge mechanism is the gold standard for heavy-duty applications, detailing technical specifications and the logistical benefits of choosing a system designed for high-impact durability.
The Engineering Behind the Swivel Mechanism
The core differentiator of this system is the 180-degree swivel mechanism. Unlike fixed hook-on systems, which rely on the flexibility of the PVC alone to allow passage, the swivel hinge rail incorporates pivoting brackets.
When a forklift or large vehicle makes contact with the curtain, the entire bracket assembly swings forward. Consequently, the stress is transferred from the PVC material to the heavy-duty metal hinge. This “give” in the system significantly reduces the risk of the PVC strips shearing off at the mounting point. Furthermore, because the brackets can swing 90 degrees in either direction, they facilitate unobstructed vehicle access without the typical “drag” associated with traditional curtains.
Built for Impact
In busy warehouses, impact is inevitable. A swivel hinge system is specifically engineered to absorb the kinetic energy of a moving vehicle. By allowing the strips to move freely with the direction of travel, the system prevents the “snagging” that often destroys lighter-duty installations. This makes it the most cost-effective solution for openings exceeding 4 metres in height where wind pressure and vehicle size are major factors.
Ideal Applications: Loading Bays and Large Openings
Swivel hinge systems are not intended for pedestrian doorways or internal office partitions. Instead, they are designed for the most demanding industrial zones.
- External Loading Bays: Large openings that require a constant thermal seal but experience frequent vehicle throughput.
- Forklift Thoroughfares: Internal corridors where heavy machinery moves at speed between temperature-controlled zones.
- Large Scale Industrial Doors: With a recommended maximum height of 10 metres, this system covers openings that standard rails simply cannot support safely.
- Heavy Machinery Enclosures: Ideal for noise reduction and dust containment around large-scale manufacturing equipment.
Notably, the durability of the swivel hinge makes it the preferred choice for facilities operating 24/7. In these environments, downtime for curtain repairs is not just an inconvenience; it is a direct hit to the bottom line. For a broader view of suitable heavy-duty options, you can explore our Swivel Hinge Heavy Duty category. Likewise, if your site centres on external vehicle access, our loading bay strip curtains page is also directly relevant.
Technical Specifications & Customisation
Precision is critical in industrial settings. A poorly fitted curtain is an ineffective curtain. The Swivel Hinge system is highly customisable to meet the specific requirements of your opening.
Swivel Hinge vs Hook-On vs Quickmount
Although each hanging system supports PVC strip curtains, they are designed for very different environments. Therefore, choosing the right hardware depends on traffic type, opening size, and the level of impact resistance required. In simple terms, Swivel Hinge is built for the toughest sites, Hook-On suits many medium-duty industrial openings, and Quickmount is intended for lighter pedestrian and light-duty use.
| System | Best for | Traffic type | Hardware style | Main advantage | Typical limitation |
|---|---|---|---|---|---|
| Swivel Hinge | Large industrial openings, loading bays, warehouse doors | Heavy forklift and vehicle traffic | Heavy-duty rotating metal hinge system | Absorbs impact and allows strips to swing with traffic direction | Higher-duty system than many smaller openings need |
| Hook-On | General industrial and commercial doorways | Pedestrian traffic and light-to-medium vehicle use | Fixed metal hook-on rail with removable plates | Simple strip replacement and strong all-round performance | Less forgiving under repeated heavy forklift impact |
| Quickmount | Internal doorways, hygiene zones, pedestrian routes | Pedestrian and light-duty traffic | Tool-free polymer mounting system | Fast fitting and easy handling | Not intended for heavy-duty vehicle routes or large loading bays |
Self-swinging PVC strips for impact-heavy openings
For sites with repeated vehicle contact, self-swinging PVC strips offer a clear advantage. Instead of forcing the PVC to take all the strain, the Swivel Hinge hardware moves with the impact. As a result, the curtain is better suited to demanding industrial use, especially where forklifts pass through all day.
By comparison, Hook-On systems are practical and widely used, particularly where maintenance teams want quick strip changes and dependable day-to-day performance. However, they do not provide the same pivoting movement under impact. Likewise, Quickmount is useful where fast, tool-free fitting matters most, yet it is designed for pedestrian and light-duty settings rather than harsh vehicle traffic.
Heavy-duty forklift door protection
When the priority is heavy-duty forklift door protection, Swivel Hinge is the strongest fit of the three systems. The rotating bracket design helps reduce snagging, strip tearing, and rail stress. Consequently, it is often the preferred option for busy loading bays, external warehouse openings, and large internal transport routes. For example, our loading bay strip curtains range is built around exactly these demands, while high pelmet / swivel hinge curtains are well suited where added height coverage is needed above the main opening.
Moreover, the same heavy-duty principle applies in specialist sectors. For instance, agricultural strip curtains can help manage larger farm machinery routes, and recycling centre strip curtains suit harsh, impact-prone environments where durability matters.

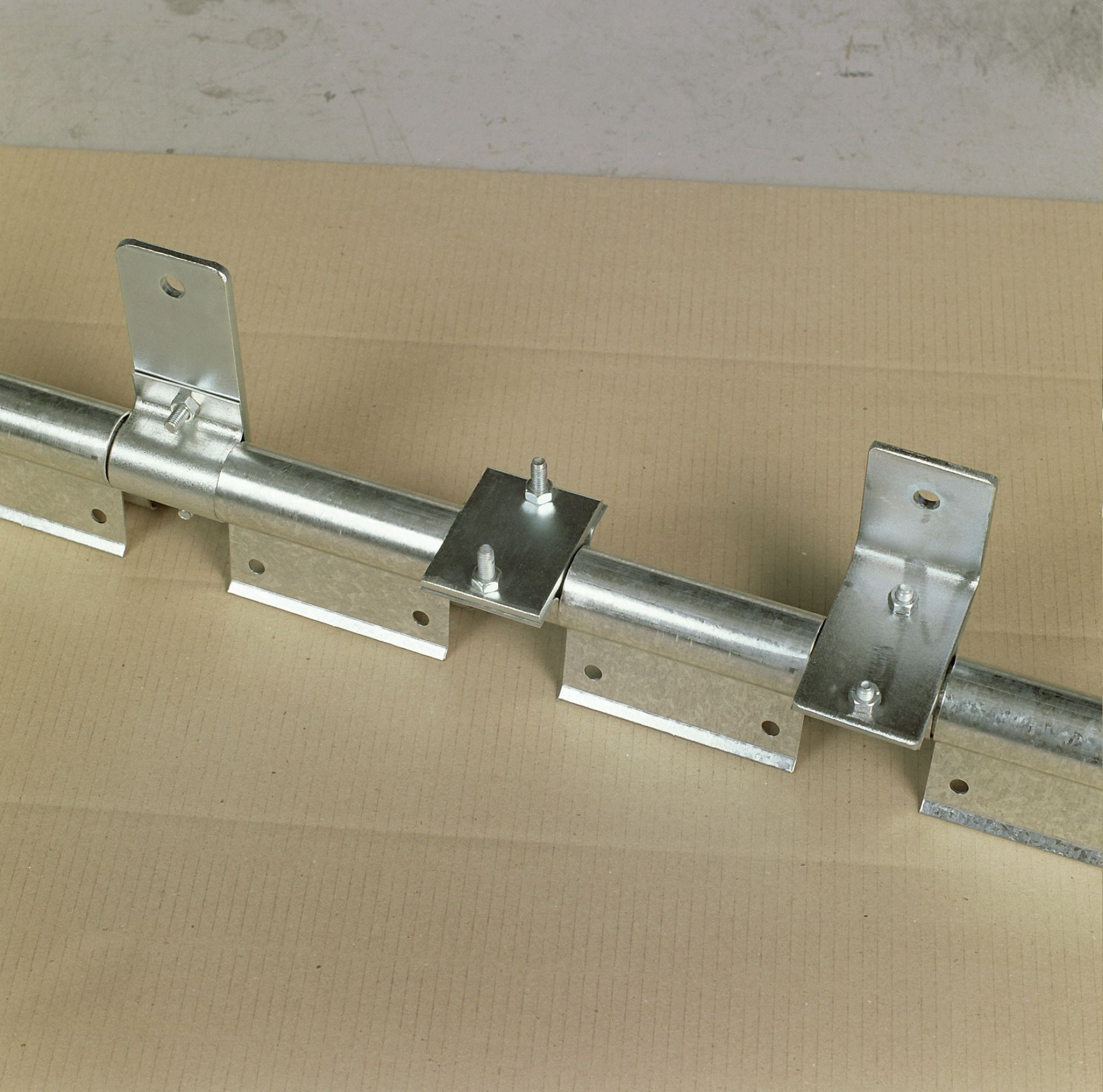

Rotating strip curtain hardware
Rotating strip curtain hardware is what sets the Swivel Hinge system apart. Rather than relying solely on the flexibility of the PVC, the hardware itself pivots to accommodate movement. This is especially valuable on taller and wider openings where strip weight, wind pressure, and repeated traffic can quickly wear out lighter systems.
For customers comparing options, the decision is usually straightforward:
- choose Swivel Hinge for high-impact industrial traffic;
- choose Hook-On for versatile medium-duty use and simpler strip replacement;
- choose Quickmount for tool-free fitting in pedestrian and light-duty areas.
Choosing the Right Width and Thickness
For swivel hinge installations, we typically recommend a heavy-duty PVC grade matched to the opening size and traffic level.
- 300mm wide x 4mm thick: Suitable for medium to large openings with regular forklift traffic. Depending on the seal required, you can view 300mm swivel rails with 80% overlap or 300mm swivel rails with 56% overlap.
- 400mm wide x 4mm thick: The ultimate heavy-duty choice, providing maximum weight and stability for external openings up to 10m high. In addition, you can compare 400mm swivel rails with 100% overlap and 400mm swivel rails with 60% overlap depending on the level of protection needed.
The 4mm thickness is essential. Thinner PVC can “sail” in the wind or be easily displaced by the air pressure changes caused by large vehicles. As a result, the additional weight of the 4mm strips helps the curtain return to its closed position immediately after passage, maintaining the environmental seal.
Overlap Options Explained
The overlap determines the efficiency of the thermal and acoustic seal. We offer four primary overlap configurations:
- 56% Overlap: Provides a basic seal for internal use with moderate traffic, as seen in our 300mm 56% overlap swivel rails.
- 60% Overlap: A standard balance for most industrial applications, including 400mm 60% overlap swivel rails.
- 80% Overlap: High performance for external doors or cold storage, with 300mm 80% overlap swivel rails offering a stronger seal.
- 100% Overlap: Maximum protection against wind, dust, and temperature loss, delivered by our 400mm 100% overlap swivel rails.
In light of these options, it is important to measure your opening accurately. For technical guidance on sizing, visit our measuring advice page.
Material Grades for Every Environment
While the swivel hinge rail provides the structure, the PVC grade determines the performance in specific climates.
- Standard Clear: Perfect for ambient temperatures and general-purpose visibility.
- Polar Grade: Designed specifically for freezer and cold-store environments, remaining flexible down to -25°C.
- Ribbed PVC: Features raised longitudinal ribs. These ribs take the initial impact from forklifts, protecting the flat surface of the PVC from scratches and keeping the curtain clear for longer.
- Solid Red/Black: Often used for the outer “warning” strips to denote the edges of the doorway, enhancing safety for vehicle operators.
Why PVC is a Consumable (and why the Rail isn’t)
It is important to maintain an impartial perspective on industrial equipment: PVC is a consumable product. Even the highest-quality PVC will eventually degrade due to UV exposure, constant impact, and cleaning chemicals.
However, the Swivel Hinge rail system is built to last. While you may need to replace the swivel hinge replacement strips every few years depending on traffic volume, the galvanised or stainless steel rail assembly is a long-term investment. This modular approach is far more cost-effective than replacing entire door systems. When the time comes for maintenance, you can easily source individual swivel hinge 400mm strips to keep your facility running smoothly.
Energy Efficiency and Noise Reduction
Beyond physical durability, the swivel hinge system provides significant operational savings.
Thermal Control
In a large warehouse, heat loss through open loading bays can account for a massive percentage of total energy costs. By installing a heavy-duty swivel hinge curtain, you create a barrier that remains closed for 99% of the time, only opening exactly where the vehicle passes through. Consequently, internal temperatures remain stable, and your HVAC systems don’t have to work overtime.
Acoustic Dampening
Industrial loading bays are loud. The heavy 4mm PVC strips act as an excellent acoustic barrier, reducing noise pollution between the warehouse and the external environment. This is particularly beneficial for facilities located near residential areas or for separating high-noise manufacturing zones from quiet packing areas. Equally, where businesses need to divide operational zones internally, partition wall strip curtains can support cleaner separation without introducing a rigid barrier.
Installation and Maintenance
The swivel hinge system is designed for straightforward installation, but due to the weight of the components, it is typically a two-person job. The rail is bolted to the face or underside of the lintel, and the pre-punched PVC strips are then bolted into the swivel brackets.
Maintenance Tips:
- Regular Cleaning: Use a mild detergent to remove dirt and grime. This maintains visibility and prevents the PVC from becoming abrasive.
- Hinge Lubrication: Periodically check the swivel mechanism to ensure the hinges move freely.
- Inspect Bolts: Ensure the bolts securing the PVC to the hinge remain tight to prevent the strips from shifting.
If you are unsure about the specific requirements for your site, our team is available to help. You can contact us for technical support or get a PVC curtain quote today tailored to your specific opening dimensions.
Summary
The Swivel Hinge PVC curtain system is the definitive choice for any facility dealing with heavy-duty vehicle traffic and large openings. Its 180-degree pivoting mechanism, combined with 4mm thick PVC, offers a level of durability and energy efficiency that standard systems simply cannot match. While the initial investment may be higher than a light-duty hook-on system, the long-term savings in reduced maintenance and energy costs make it the superior industrial choice.
